Toyota
TOYOTA HIGH STEER CROSSOVER STEERING KIT
Crossover Steering is critical for rock crawling. The stock steering just can't keep pace with today's super flexible suspension systems. This results in broken stock steering arms and loss of steering.
HYDRAULIC ASSIST STEERING
The Hydraulic Assist Steering Toyota kit features a 6" X 1.5" stroke hydraulic ram with high temp inner and outer seals for long life and no leaks. For Dana knuckle applications we also offer an 8" stroke version.
Easy to install brackets make installing this kit simple and the mounting hardware is specially designed to fit the Toyota axle and High Steer. Once the steering box has been tapped, installation of the ram takes about one hour. Each bracket is formed from heavy-duty 1/4" plate steel for extra strength. Fits 1979 - 1995 Toyota Pickup and 4Runner with solid front axle.
Kit includes:
- Ram with high temp inner and outer seals
- Rod ends w/jam nut
- Ram bracket for axle housing
- Ram bracket for tie rod
- (2) Hoses
- (2) JIC 90 degree elbows
- Mounting Hardware
- Instructions w/photos
Kit requires:
- High Steer crossover steering with 1.25" tie rod
- Tapped steering box & fittings
Available Options:
- 1.5" X 6", $230
- 2" X 6", $251
- 2" X 8", $251
- 1.5" X 6" TG, For Rock Assault™ Housing
- 2" X 8" TG, For Rock Assault™ Housing
- 2" X 6" TG, For Rock Assault™ Housing
- 6" Double Ended Ram and Clevis Kit
- Orbital (100ml)
- Full Hydraulic Steering Pump with Pulley
- Tie Rod Kit
- Double Ended Ram Mounting Kit
- Steering Column
- Orbital Mounting Kit
- Reservoir with Filter
- Reservoir Bracket
- Cooler
- Power steering belt
- Complete hose kit
- All necessary hardware
- Front Leaf Springs (your choice 3" 4" or 5")
- High Steer Crossover Steering Kit
- Front Drop Hanger with Greasable Bolts
- Greasable 5" Shackles
- Frame Tubes & Jigs
- Steering Stabilizer Kit
- U bolt Flip Kit
- Shock Hoops (2)
- Bilstein Shocks (2)
- Front Brake Lines (2)
- Vented Rotors (2)
- Bumpstop Extensions (2)
- Wheel Spacers (2)
- Bumpstops (2)
- Front Axle Gusset
- Axle Diff Armor
- Knuckle Service Kit
- Wheel Bearing Kit (2)
- Motor Mount Cover Plates
- Spring Pad
- 56" Long Rear Leaf Springs
- Welded Rear Spring Hangers
- Rear Shackle Mounts
- Greasable Rear 5" Shackles
- 12" Bilstein Shocks
- Shock Mounts
- U-Bolt Flip Kit
- Extended Brake Line
- Spring Perches
- Greasable Spring Bolts & Bushings
- Front Spring Hanger w/bolts & bushings
- Front Leaf Springs w/bushings
- Greasable Shackles
- 2 Bilstein Shocks
- 2 Shock Hoops w/Gussets
- U Bolt Flip Kit
- 2 Extended Front Brake Lines
- High Steer Crossover Steering
- Steering Stabilizer Kit
- Heavy Duty IFS Mount Kit
- Small Diff Armor
- Gusset, Upper Axle
- Knuckle Rebuild Kit
- 2 Wheel Bearing Kits
- 2 Bumpstops
- Spring Pad
- Instructions
- Wheel Spacers, 1.00" Wide
- Wheel Spacers, 1.25" Wide
- Wheel Spacers, 1.50" Wide
- Wheel Spacers, 2.00" Wide
- Wheel Spacers, 3.00" Wide
- Rear Axle Wheel Stud
- Acorn Nut
- Lug Nut, Open

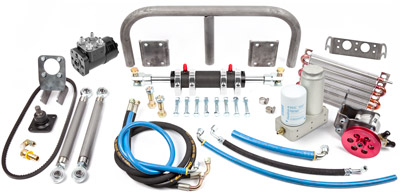

TOYOTA FULL HYDRAULIC STEERING KIT
This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all
steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications.
Kit Includes:
Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Royal Purple fully synthetic power steering fluid recommended. OK to use standard power steering fluid or a full synthetic.

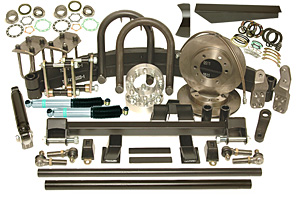

SOLID AXLE SWAP KIT
Solid Axle Swap Kits include a front diff armor plate, upper axle gusset wheel bearing and knuckle service kits. To install your solid axle kit you're going to need a rear matching lift kit, solid front axle from a 79-85 Pickup or 4Runner, and a long spline drive shaft.
There are three different height options available . The hangers and shackles included with each kit add one inch of lift. Thus our 3" spring kit has 4" lift and our 4" kit would be 5" of lift.
Note: On V6 installations, we recommend moving the front hanger forward 3/4". This allows the tie rod to clear the stock 4wd oil pan. It also kicks the shackles forward slightly helping the springs to carry the heavier load of the V6 motor.
SAS Kit Includes:

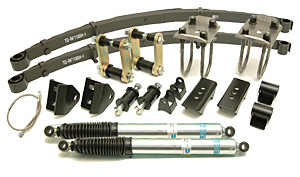

REAR SUSPENSION LIFT KIT
Rear Suspension Lift Kits feature long travel springs and shocks for maximum flexibility on the trail .
They are intended for use on 1979-1988 Trucks and for coil to leaf swaps on 90-95 4Runners . They are available in 3' , 4' and 5" configurations .
Kit Includes:

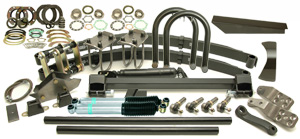

FRONT SUSPENSION LIFT KIT
Each Front Suspension Lift Kit includes a knuckle rebuild kit, wheel bearing kits, upper axle gusset and differential armor.
Kit Includes:
Individual components are also available . Call us for details .

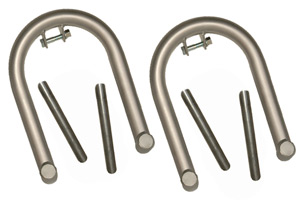

LONG TRAVEL SHOCK HOOP KIT
The Long Travel Shock Hoop Kit is long enough to accommodate a 14” shock but can also be used with a 12" Shock . The shock hoops are made out of 1035 DOM . From the top of the hoop to the bottom it measures 16”, and from the weldment mounting surface to the shock eye brackets measures 13”. Some modification may be required for propper instalation .
THREE HOLE ADJUSTABLE POSITION SPRING PERCHES
When installing lifted rear leaf springs , it's best to rotate the pinion so it points directly at the rear
transfer case output flange and use a CV style drive shaft . The best way to rotate the pinion is to cut off the old perches and weld in a new set at the proper angle . Normally the spring pin is installed in the center hole but you can also move the rear axle forward or backward 1" by using the optional holes. Made from 1/4 plate stee l. Unpainted finish.
REAR SHACKLE HANGERS
If you're installing longer rear springs you may need to relocate your rear shackle mounts , depending on your shackle angle preference . You can do this by cutting off the original units and re-welding them back on , or you can also cut off the old ones and install new ones . These shackle hangers use OEM bushings and are stronger than the factory shackle mounts . Unpainted finish .
SLOPED SPRING HANGERS
Installing longer rear springs requires moving the rear spring hangers forward on the frame. The factory hangers are too thin to cut off and reuse. These hangers weld under the frame, forward of the stock units. Made from 1/4" plate steel. Much stronger then stock hangers. 18mm bolt holes. Unpainted finish.
WELD-ON REAR SPRING HANGERS
Made from 1/4" plate steel. Much stronger then stock hangers.
18mm bolt holes. Unpainted finish.
TOYOTA ALUMINUM WHEEL SPACERS
These bolt on wheel spacers are designed to give you a little more width without changing out your axle for a wider one . Great for use on solid axles conversions to make the front axle similar in width the wider rear axle found on 86 and up Toyota trucks . Bolt pattern is 6 stud on a 5.5" round circle . Features safety graded studs and matching nuts for proper fitment . Made from Billet 6061-T6 aluminum . Grade 8 Studs , Grade 10.9 nuts . Five sizes available .
Shipped as a set of 2 spacers w/nuts . Every spacer features a precision machined surface . Only high quality nuts and studs that are hardness graded and stamped are used . Six lug wheel spacers fit Toyota FJ Cruiser , Pickups , 4Runners , FJ-40 , FJ-60 & FJ80 .
Note: Wheel spacers are sold in pairs.
Available options:
FLIP SOCKET
For installing wheels and spacers this is the right tool for the job . 19mm on one end and 21mm on the other . Thin wall design fits better than standard sockets . This socket is rated for use with an impact gun . 1/2" drive.
WHEEL LUG NUTS AND STUDS
Replacement nuts are available in both open style and closed acorn style. M12 X 1.50 threads.
Wheel studs are for rear axle application. Available options:
